產品參數

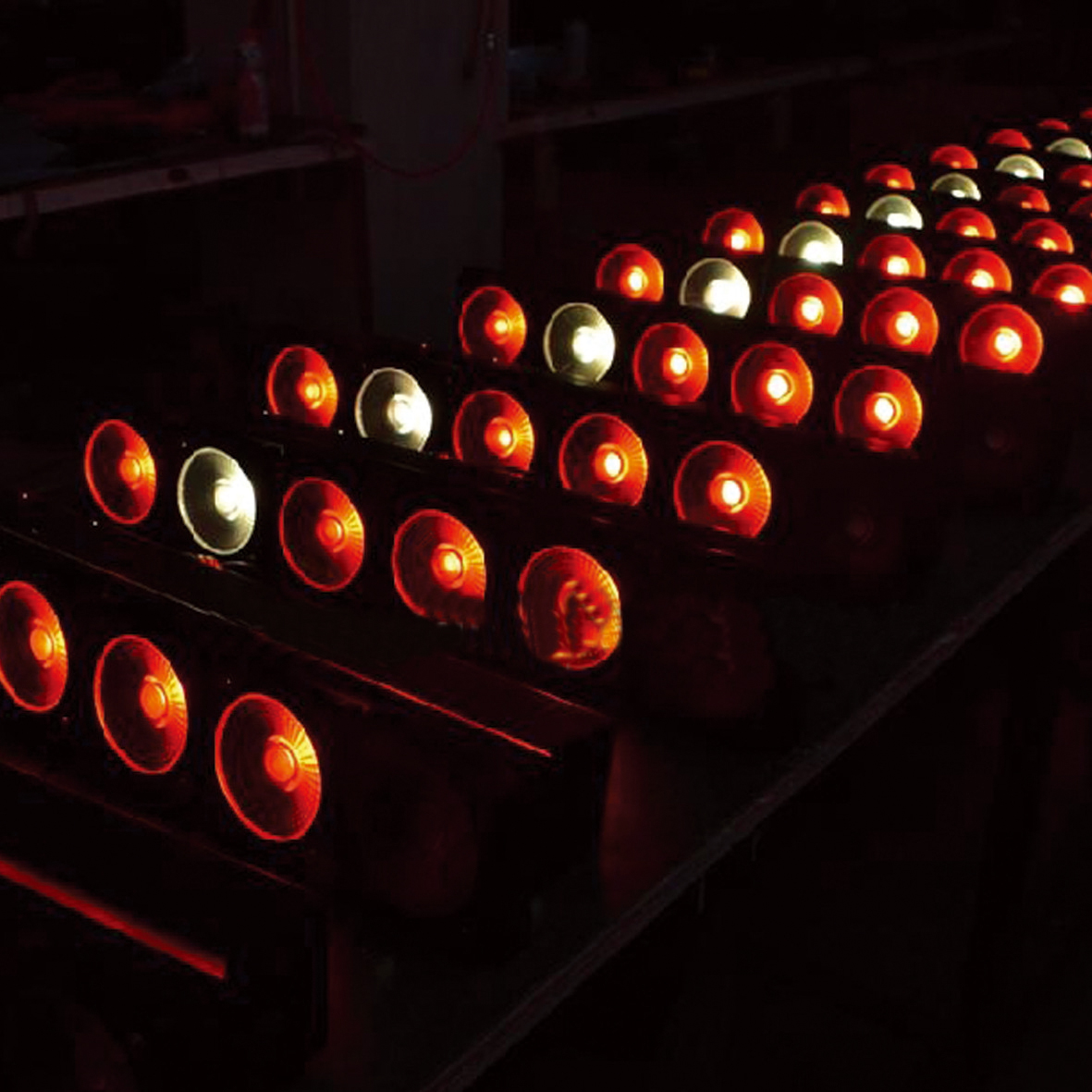

LED 5頭矩陣燈
XL-GZD05
額定電壓：AC110V～240V,50～60Hz
功率：200W
光源：LED（30W）5顆RGB 三合一燈珠（可做單色）平均壽命：50000H
色溫校正：3200K～7200K線性調節
透鏡角度：45°
發光角度：可手動調節角度
頻閃：獨立電子頻閃1-25Hz，可隨機頻閃，脈沖頻閃，同步異步頻閃，單色、混色溫頻閃
混色：W,Y線性混色，0-100%飽和度可調
電子調光：0-100%獨立電子線性調光，攝像視頻真實無閃爍，主從自走自動同步功能，控臺正常控制自走永久同步
數碼管顯示菜單：調用各種場景，內置程序可以直接調用執行
控制模式：多種聲控、DMX512、內置程序自走、主從聯機模式
通道：18通道(二種通道模式可選)
燈具連接：三芯信號線IN/OUT 電源線IN/OUT
特點：鑄鋁外殼，光效高，混光均勻，性能穩定，配1米長電源、信號線，1024級超高灰度調光更加柔和，
防護等級：電氣Ⅱ級，防火V-1，防護IP20
聲控靈敏度：65-130dB
工作環境：-20℃~40℃
采用高亮度反光杯,配上高亮度燈珠,設控臺調節線性亮度功能,產生精密、明亮、銳利的光束
設有數碼顯示幕控制DMX編碼及燈體功能選擇,內置抗干擾電路及燈體超溫保護 ，其結構完善緊密,高速頻閃可于1-10次/秒不間斷連續頻閃，外表采用鋁合金制定而成,配合現代感的流線型外型設計,使其外觀整齊亮麗。
Rated voltage: AC110V~240V, 50~60Hz
Power: 200W
Light source: LED (30W) 5 RGB three in one beads (can be used as monochrome) Average lifespan: 50000H
Color temperature correction: 3200K~7200 K linear adjustment
Lens angle: 45 °
Luminous angle: can be manually adjusted
Strobe: Independent electronic strobe 1-25Hz, random strobe, pulse strobe, synchronous step strobe, monochrome, mixed color temperature strobe
Color mixing: W, Y linear color mixing, adjustable saturation from 0 to 100%
Electronic dimming: 0-100% independent electronic linear dimming, real and flickerless camera video, automatic synchronization function between master and slave, normal control of the control console, permanent synchronization of self walking
Nixie tube display menu: call various scenes, and the built-in program can be directly called for execution
Control modes: multiple voice control, DMX512, built-in program self running, master-slave online mode
Channel: 18 channels (two channel modes are optional)
Lamp connection: three core signal wire IN/OUT power wire IN/OUT
Features: Cast aluminum casing, high light efficiency, uniform light mixing, stable performance, equipped with a 1 meter long power and signal cable, 1024 level ultra high gray level dimming for softer lighting,
Protection level: Electrical level II, fire resistance V-1, protection Ip20
Voice control sensitivity: 65-130dB
Working environment: -20 ℃~40 ℃
Adopting a high brightness reflective cup, equipped with high brightness light beads, and equipped with a control console to adjust linear brightness function, producing precise, bright, and sharp light beams
It is equipped with digital display screen control DMX code and lamp body function selection, built-in anti-interference circuit and lamp body overtemperature protection. Its structure is perfect and compact. High speed strobe can continuously strobe 1-10 times/second. Its appearance is made of aluminum alloy, which makes it neat and bright with modern streamline design.
